Have you ever
wondered how e-mail gets from your desktop to a
friend halfway around the world? What is a POP3
server, and how does it hold your mail? The answers
may surprise you, because it turns out that e-mail
is an incredibly simple system at its core! In this
article, we'll take an in-depth look at e-mail and
how it works!
An
E-mail Message
According to this
article, the first e-mail message was sent in 1971
by an engineer named Ray Tomlinson. Prior to this,
you could only send messages to users on a single
machine. Tomlinson's breakthrough was the ability to
send messages to other machines on the Internet,
using the @ sign to designate the receiving
machine.
An e-mail
message has always been nothing more than a simple
text message -- a piece of text sent to a
recipient. In the beginning and even today, e-mail
messages tend to be short pieces of text, although
the ability to add attachments now makes many e-mail
messages quite long. Even with attachments, however,
e-mail messages continue to be text messages --
we'll see why when we get to the section on
attachments.
E-mail
Clients
You have probably
already received several e-mail messages today. To
look at them, you use some sort of e-mail client.
Many people use well-known stand-alone clients like
Microsoft Outlook, Outlook Express, Eudora or
Pegasus. People who subscribe to free e-mail
services like Hotmail or Yahoo use an e-mail client
that appears in a Web page. If you are an AOL
customer, you use AOL's e-mail reader. No matter
which type of client you are using, it generally
does four things:
-
It shows you a list of all of the
messages in your mailbox by displaying the
message headers. The header shows you who sent
the mail, the subject of the mail and may also
show the time and date of the message and the
message size.
-
It lets you select a message header
and read the body of the e-mail message.
-
It lets you create new messages and
send them. You type in the e-mail address of the
recipient and the subject for the message, and
then type the body of the message.
-
Most e-mail clients also let you
add attachments to messages you send and save the
attachments from messages you receive.
Sophisticated
e-mail clients may have all sorts of bells and
whistles, but at the core, this is all that an
e-mail client does.
A
Simple E-mail Server
Given that
you have an e-mail client on your machine, you are
ready to send and receive e-mail. All that you need
is an e-mail server for the client to connect
to. Let's imagine what the simplest possible e-mail
server would look like in order to get a basic
understanding of the process. Then we will look at
the real thing.
If you have
read How Web Servers Work, then you know that
machines on the Internet can run software
applications that act as servers. There are
Web servers, FTP servers, telnet servers and e-mail
servers running on millions of machines on the
Internet right now. These applications run all the
time on the server machine and they listen to
specific ports, waiting for people or
programs to attach to the port (see
How Web Servers Work for details). The simplest
possible e-mail server would work something like
this:
-
It would have a list of e-mail
accounts, with one account for each person who can
receive e-mail on the server. My account name
might be mbrain, John Smith's might be
jsmith, and so on.
-
It would have a text file for each
account in the list. So the server would have a
text file in its directory named MBRAIN.TXT,
another named JSMITH.TXT, and so on.
-
If someone wanted to send me a
message, the person would compose a text message
("Marshall, Can we have lunch Monday? John") in an
e-mail client, and indicate that the message
should go to mbrain. When the person presses the
Send button, the e-mail client would connect to
the e-mail server and pass to the server the name
of the recipient (mbrain), the name of the sender
(jsmith) and the body of the message.
-
The server would format those
pieces of information and append them to the
bottom of the MBRAIN.TXT file. The entry in the
file might look like this:
There are
several other pieces of information that the server
might save into the file, like the time and date of
receipt and a subject line; but overall, you can see
that this is an extremely simple process.
As other
people sent mail to mbrain, the server would simply
append those messages to the bottom of the file in
the order that they arrived. The text file would
accumulate a series of five or 10 messages, and
eventually I would log in to read them. When I
wanted to look at my e-mail, my e-mail client would
connect to the server machine. In the simplest
possible system, it would:
-
Ask the server to send a copy of
the MBRAIN.TXT file
-
Ask the server to erase and reset
the MBRAIN.TXT file
-
Save the MBRAIN.TXT file on my
local machine
-
Parse the file into the separate
messages (using the word "From:" as the separator)
-
Show me all of the message headers
in a list
When I
double-clicked on a message header, it would find
that message in the text file and show me its body.
You have to
admit that this is a VERY simple system.
Surprisingly, the real e-mail system that you use
every day is not much more complicated than this!
The Real E-mail System
For the vast
majority of people right now, the real e-mail system
consists of two different servers running on a
server machine. One is called the SMTP server,
where SMTP stands for Simple Mail Transfer Protocol.
The SMTP server handles outgoing mail. The other is
either a POP3 server or an IMAP server,
both of which handle incoming mail. POP stands for
Post Office Protocol, and IMAP stands for Internet

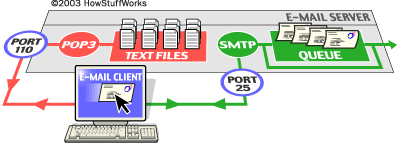

Mail Access Protocol. A typical e-mail server looks
like this:
The SMTP
server listens on well-known port number 25, POP3
listens on port 110 and IMAP uses port 143 (see
How Web Servers Work for details on ports).
The
SMTP Server
Whenever you send a
piece of e-mail, your e-mail client interacts with
the SMTP server to handle the sending. The SMTP
server on your host may have conversations with
other SMTP servers to actually deliver the e-mail.
Let's assume
that I want to send a piece of e-mail. My e-mail ID
is brain, and I have my account on
howstuffworks.com. I want to send e-mail to
jsmith@mindspring.com. I am using a stand-alone
e-mail client like Outlook Express.
When I set up
my account at howstuffworks, I told Outlook Express
the name of the mail server --
mail.howstuffworks.com. When I compose a message
and press the Send button, here is what happens:
-
Outlook Express connects to the
SMTP server at mail.howstuffworks.com using
port 25.
-
Outlook Express has a conversation
with the SMTP server, telling the SMTP server the
address of the sender and the address of the
recipient, as well as the body of the message.
-
The SMTP server takes the "to"
address (jsmith@mindspring.com) and breaks it into
two parts:
If the "to"
address had been another user at howstuffworks.com,
the SMTP server would simply hand the message to
the POP3 server for howstuffworks.com (using a
little program called the delivery agent).
Since the recipient is at another domain, SMTP
needs to communicate with that domain.
-

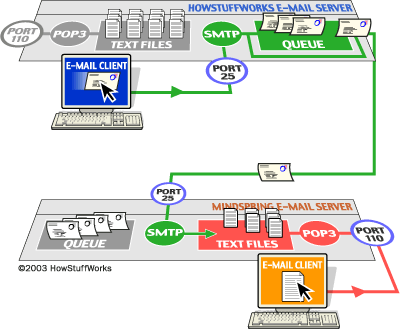

The SMTP server has a conversation
with a Domain Name Server, or DNS.
It says, "Can you give me the IP address of the
SMTP server for mindspring.com?" The DNS replies
with the one or more IP addresses for the SMTP
server(s) that Mindspring operates.
-
The SMTP server at
howstuffworks.com connects with the SMTP server at
Mindspring using port 25. It has the same simple
text conversation that my e-mail client had with
the SMTP server for HowStuffWorks, and gives the
message to the Mindspring server. The Mindspring
server recognizes that the domain name for jsmith
is at Mindspring, so it hands the message to
Mindspring's POP3 server, which puts the message
in jsmith's mailbox.
If, for some
reason, the SMTP server at HowStuffWorks cannot
connect with the SMTP server at Mindspring, then the
message goes into a queue. The SMTP server on most
machines uses a program called sendmail to do
the actual sending, so this queue is called the
sendmail queue. Sendmail will periodically try
to resend the messages in its queue.
For example,
it might retry every 15 minutes. After four hours,
it will usually send you a piece of mail that tells
you there is some sort of problem. After five days,
most sendmail configurations give up and return the
mail to you undelivered.
The actual
conversation that an e-mail client has with an SMTP
server is incredibly simple and human readable. It
is specified in public documents called Requests
For Comments (RFC), and a typical conversation
looks something like this:
helo
test
250 mx1.mindspring.com Hello abc.sample.com
[220.57.69.37], pleased to meet you
mail from: test@sample.com
250 2.1.0 test@sample.com... Sender ok
rcpt to: jsmith@mindspring.com
250 2.1.5 jsmith... Recipient ok
data
354 Enter mail, end with "." on a line by itself
from: test@sample.com
to:jsmith@mindspring.com
subject: testing
John, I am testing...
.
250 2.0.0 e1NMajH24604 Message accepted
for delivery
quit
221 2.0.0 mx1.mindspring.com closing connection
Connection closed by foreign host.
What the
e-mail client says is in blue, and what the SMTP
server replies is in green. The e-mail client
introduces itself, indicates the "from" and "to"
addresses, delivers the body of the message and then
quits. You can, in fact, telnet to a mail
server machine at port 25 and have one of these
dialogs yourself -- this is how people "spoof"
e-mail.
You can see
that the SMTP server understands very simple text
commands like HELO, MAIL, RCPT and DATA. The most
common commands are:
-
HELO -
introduce yourself
-
EHLO -
introduce yourself and request extended mode
-
MAIL FROM:
- specify the sender
-
RCPT TO:
- specify the recipient
-
DATA -
specify the body of the message (To:, From: and
Subject: should be the first three lines.)
-
RSET -
reset
-
QUIT -
quit the session
-
HELP -
get help on commands
-
VRFY -
verify an address
-
EXPN -
expand an address
-
VERB -
verbose
The POP3 Server
In the
simplest implementations of POP3, the server really
does maintain a collection of text files -- one for
each e-mail account. When a message arrives, the
POP3 server simply appends it to the bottom of the
recipient's file!
When you
check your e-mail, your e-mail client connects to
the POP3 server using port 110. The POP3
server requires an account name and a
password. Once you have logged in, the POP3
server opens your text file and allows you to access
it. Like the SMTP server, the POP3 server
understands a very simple set of text commands. Here
are the most common commands:
-
USER -
enter your user ID
-
PASS -
enter your password
-
QUIT -
quit the POP3 server
-
LIST -
list the messages and their size
-
RETR -
retrieve a message, pass it a message number
-
DELE -
delete a message, pass it a message number
-
TOP -
show the top x lines of a message, pass it a
message number and the number of lines
Your e-mail
client connects to the POP3 server and issues a
series of commands to bring copies of your e-mail
messages to your local machine. Generally, it will
then delete the messages from the server (unless
you've told the e-mail client not to).
You can see
that the POP3 server simply acts as an interface
between the e-mail client and the text file
containing your messages. And again, you can see
that the POP3 server is extremely simple! You can
connect to it through telnet at port 110 and issue
the commands yourself if you would like to.
The IMAP Server
As you can
see, the POP3 protocol is very simple. It allows you
to have a collection of messages stored in a text
file on the server. Your e-mail client (e.g. Outlook
Express) can connect to your POP3 e-mail server and
download the messages from the POP3 text file onto
your PC. That is about all that you can do with
POP3.
Many users
want to do far more than that with their e-mail, and
they want their e-mail to remain on the server. The
main reason for keeping your e-mail on the server is
to allow users to connect from a variety of
machines. With POP3, once you download your e-mail
it is stuck on the machine to which you downloaded
it. If you want to read your e-mail both on your
desktop machine and your laptop (depending on
whether you are working in the office or on the
road), POP3 makes life difficult.
IMAP
(Internet Mail Access Protocol) is a more advanced
protocol that solves these problems. With IMAP, your
mail stays on the e-mail server. You can organize
your mail into folders, and all the folders live on
the server as well. When you search your e-mail, the
search occurs on the server machine, rather than on
your machine. This approach makes it extremely easy
for you to access your e-mail from any machine, and
regardless of which machine you use, you have access
to all of your mail in all of your folders.
Your e-mail
client connects to the IMAP server using port 143.
The e-mail client then issues a set of text commands
that allow it to do things like list all the folders
on the server, list all the message headers in a
folder, get a specific e-mail message from the
server, delete messages on the server or search
through all of the e-mails on the server.
One problem
that can arise with IMAP involves this simple
question: “If all of my e-mail is stored on the
server, then how can I read my mail if I am not
connected to the Internet?” To solve this problem,
most e-mail clients have some way to cache e-mail on
the local machine. For example, the client will
download all the messages and store their complete
contents on the local machine (just like it would if
it were talking to a POP3 server). The messages
still exist on the IMAP server, but you now have
copies on your machine. This allows you to read and
reply to e-mail even if you have no connection to
the Internet. The next time you establish a
connection, you download all the new messages you
received while disconnected and send all the mail
that you wrote while disconnected.
Attachments
Your e-mail
client allows you to add attachments to e-mail
messages you send, and also lets you save
attachments from messages that you receive.
Attachments might include word processing documents,
spreadsheets, sound files, snapshots and pieces of
software. Usually, an attachment is not text (if it
were, you would simply include it in the body of the
message). Since e-mail messages can contain only
text information, and attachments are not text,
there is a problem that needs to be solved.
In the early
days of e-mail, you solved this problem by hand,
using a program called uuencode. The uuencode
program assumes that the file contains binary
information. It extracts 3 bytes from the binary
file and converts them to four text characters (that
is, it takes 6 bits at a time, adds 32 to the value
of the 6 bits and creates a text character. What
uuencode produces, therefore, is an encoded
version of the original binary file that contains
only text characters. In the early days of e-mail,
you would run uuencode yourself and paste the
uuencoded file into your e-mail message.
Here is
typical output from the uuencode program:
begin 644
reports
M9W)E<" B<&P_(B O=F%R+VQO9R]H='1P9"]W96(V-C1F-
BYA8V-E<W,N;&]GM('P@8W5T("UF(#(@+60@(C\B('P@8W5T
("UF(#$@+60@(B8B(#X@<V5A<F-HM+61A=&$M)#$*?B]C;
W5N="UP86=E<R!\('-O<G0@/B!S=&%T<RTD,0IC<
" @M?B]W96)S:71E+V-G:2UB:6XO<W5G9V5S="UD871A+V1A=
&$@<W5G9V5S="TDM,0IC<"!^+W=E8G-I=&4O8V=I+6)I;B
]W:&5R92UD871A+V1A=&$@=VAE<F4MM)#$*8W @?B]W96)S:7
1E+V-G:2UB:6XO96UA:6QE<BUD871A+V1A=&$@96UAL:6PM)#
$*?B]G971L;V<@/B!L;V=S+20Q"GXO=&]T86P@/B!T;W1A;"T
D,0IA
End
The recipient
would then save the uuencoded portion of the message
to a file and run uudecode on it to translate
it back to binary. The word "reports" in the first
line tells uudecode what to name the output file.
Modern e-mail
clients are doing exactly the same thing, but they
run uuencode and uudecode for you automatically. If
you look at a raw e-mail file that contains
attachments, you'll find that the attachment is
represented in the same uuencoded text format shown
above!
Considering
its tremendous impact on society, having forever
changed the way we communicate, today's e-mail
system is one of the simplest things ever devised!
There are parts of the system, like the routing
rules in sendmail, that get complicated, but the
basic system is incredibly straightforward.
The next time you send an e-mail, you'll know
exactly how it's getting to its destination!
